Seco

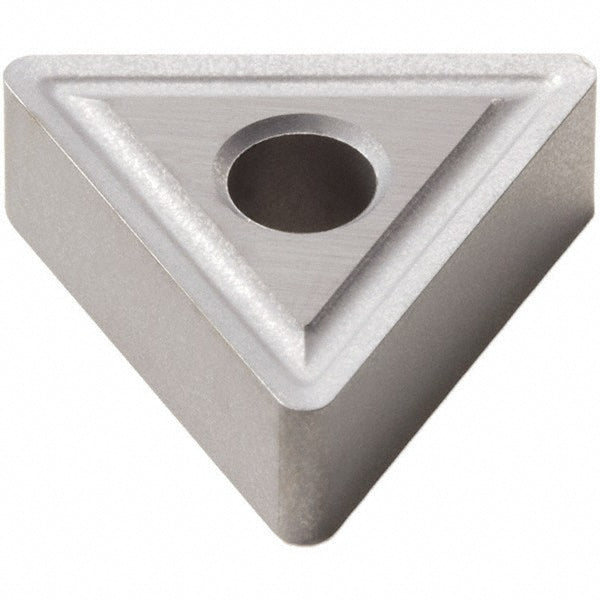

TNMG220408-M1 Carbide Insert, Grade 883 - Seco 00040604
MFR# 00040604ISO/ANSI# TNMP432-M1Series TNMP-M1
$20.64List $26.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade883
MaterialCarbide
Description
The Seco 00040604 is a TNMG220408-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMP432-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMP
Insert thickness in3/16
Iso codeTNMG220408-M1
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00040604
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
