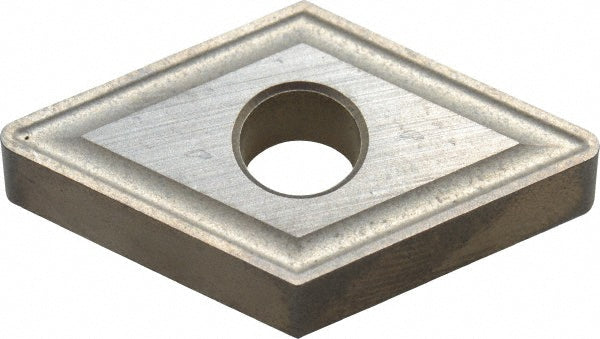

DNMG150408-MR4 Carbide Insert, Grade 883 - Seco 00040684

Seco

DNMG150408-MR4 Carbide Insert, Grade 883 - Seco 00040684

MFR# 00040684ISO/ANSI# DNMG432-MR4Series DNMG-MR4

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
Grade883
MaterialCarbide

Description

The Seco 00040684 is a DNMG150408-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MR4
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number00040684
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
