Seco

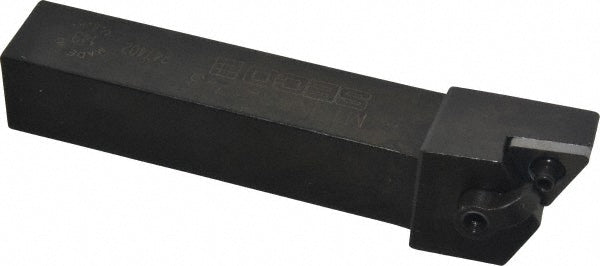

Indexable Turning & Profiling - Seco 00040974
MFR# 00040974Cat# MTJNR; LS123Series Multiple Lock
$136.44List $156.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00040974 indexable turning & profiling. Suited for universal. Series Multiple Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeTN33
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1200
Insert compatibilityTN..33.
Insert holding methodClamp; Pin
Insert inscribed circle in3/8
Manufacturers catalog numberMTJNR; LS123
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-5
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleMTJN
