Seco

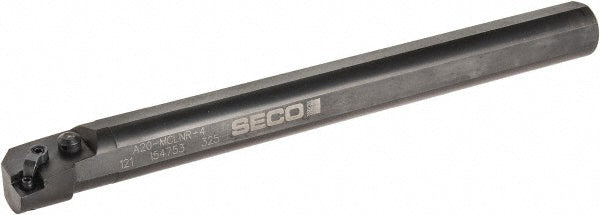

Indexable Boring - Seco 00041050
MFR# 00041050
$393.58List $450.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00041050 indexable boring.
Specifications
Center to cutting edge0.7650
ClampCL-20
Clamp screwXNS-47
Compatible insert shapeDiamond
Compatible insert size code43
Coolant hole diameter0.3750
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityCNMG 432
Insert holding methodPin & Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5.00
Lock pin numberNL-44
Minimum bore diameter1.5300
Msc manufacturer numberA20-MCLNR-4
Multi use toolNo
Overall length in14
RakeNegative
Rake angle-14.00
Shank diameter in1-1/4
Toolholder styleMCLN
Tool materialSteel
