Seco

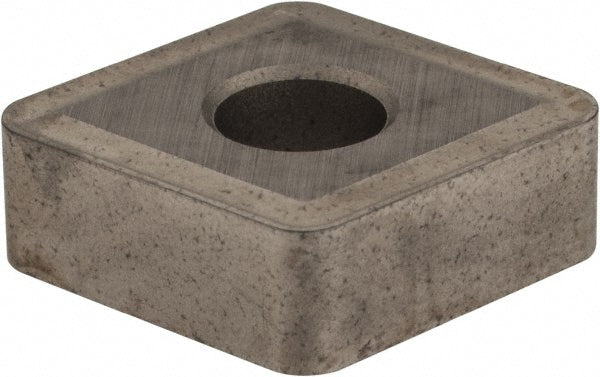

CNMG120416-MR4 Carbide Insert, Grade 883 - Seco 00041376
MFR# 00041376ISO/ANSI# CNMG434-MR4Series CNMG-MR4
$14.25List $18.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
Grade883
MaterialCarbide
Description
The Seco 00041376 is a CNMG120416-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG434-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120416-MR4
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00041376
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.4449
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
