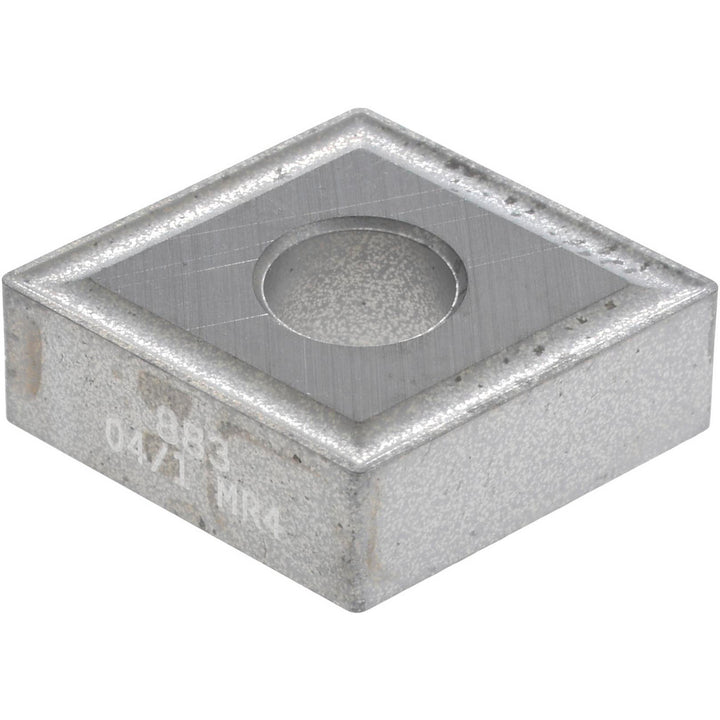

CNMG120404-MR4 Carbide Insert, Grade 883 - Seco 00041713

Seco

CNMG120404-MR4 Carbide Insert, Grade 883 - Seco 00041713

MFR# 00041713ISO/ANSI# CNMG120404Series CNMG-MR4

$14.25List $18.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade883
MaterialCarbide

Description

The Seco 00041713 is a CNMG120404-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerMR4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG431-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-MR4
Iso insert codeCNMG120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number00041713
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
