Seco

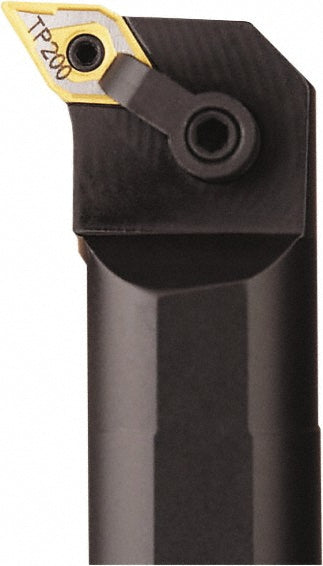

Indexable Boring - Seco 00043209
MFR# 00043209
$535.27List $612.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00043209 indexable boring.
Specifications
Center to cutting edge1.3750
Compatible insert shapeDiamond
Compatible insert size code43/44*
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityDNMG 432
Insert holding methodPin & Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle93
Minimum bore diameter3.0000
Multi use toolNo
Overall length16.0000
RakeNegative
Rake angle-5.00
Shank diameter in2
Toolholder styleA-MDUN
Tool materialSteel
