Seco

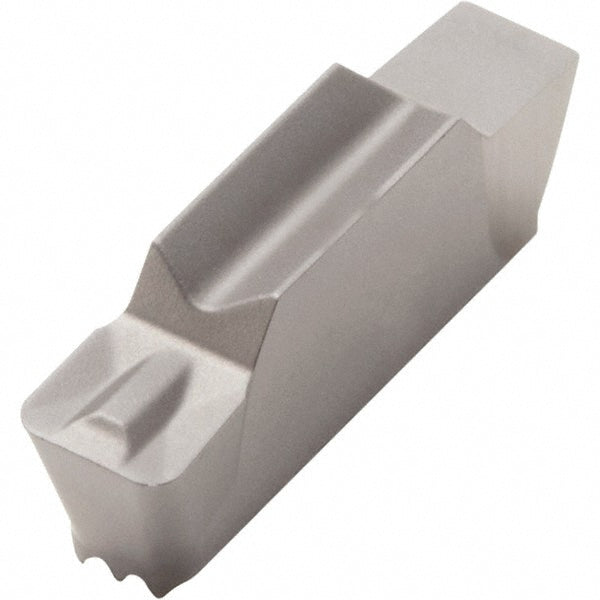

Solid Carbide Insert, Grade 883 - Seco 00045653
MFR# 00045653Series MDT
$25.76List $33.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade883
MaterialSolid Carbide
Description
The Seco 00045653 is a solid carbide indexable insert, grade 883.
Specifications
ChipbreakerMT
Corner radius0.0310
Cutting height0.1770
Full radiusNo
Full radius insertNo
Insert handNeutral
Insert length0.6300
Insert materialSolid Carbide
Insert size code160408
Insert styleLCMR
Manufacturer grade883
Material gradeC2
Maximum cutting width0.1570
Relief angle7
Single or double endSingle
StyleLCMR160408-0400-MT
