Seco

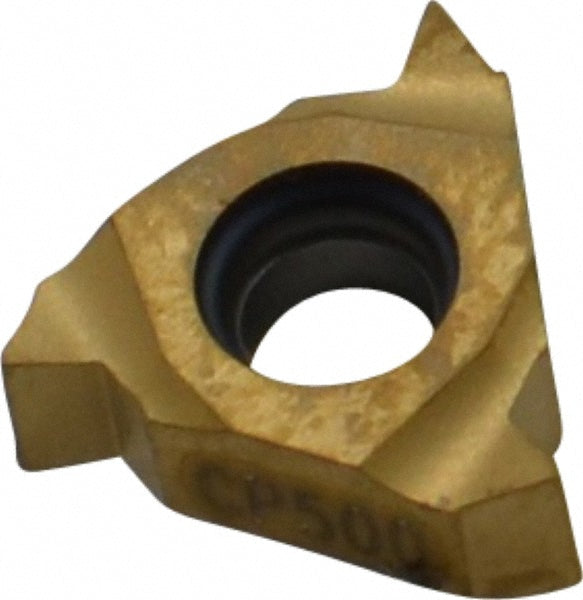

1/4" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00045833
MFR# 00045833Series Snap Tap
$40.00List $51.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00045833 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0270
Face of insert to tip centerline0.0390
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert style11NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialUniversal
StandardsISO
Thickness0.1181
Threads per inch14
Thread standardNPT
Thread typeInternal
