Seco

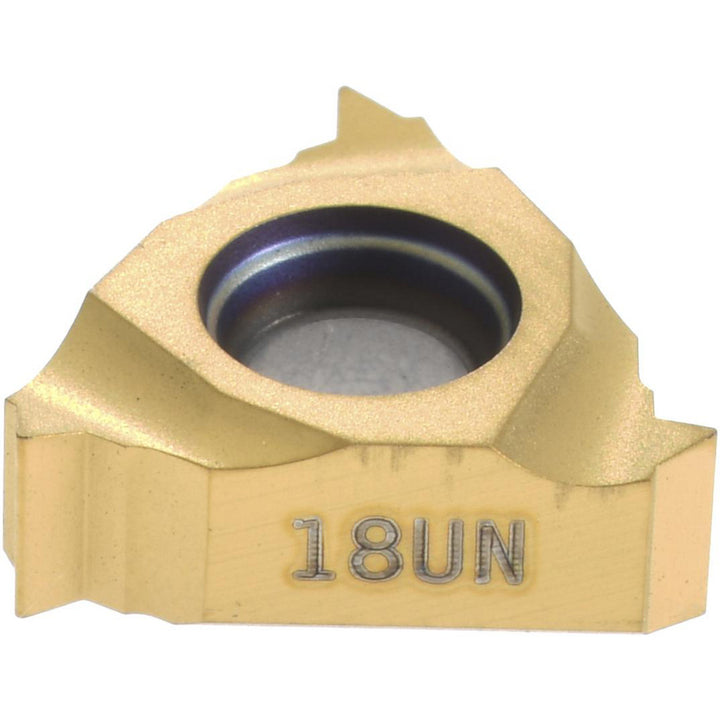

1/4" IC Carbide Insert, Grade CP500, TiAlN - Seco 00045933
MFR# 00045933Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00045933 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting edge to theoretical edge length0.0310
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialCarbide
Insert style11NR
Manufacturer gradeCP500
Primary workpiece materialUniversal
StandardsISO
Thickness0.1181
Threads per inch18
Thread standardUN
Thread typeInternal
