Seco

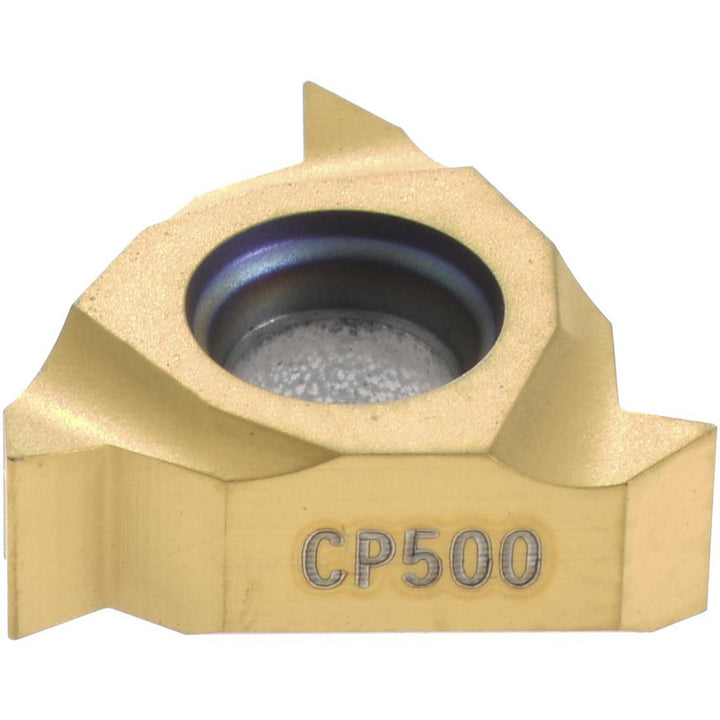

1/4" IC Carbide Insert, Grade CP500, TiAlN - Seco 00046164
MFR# 00046164Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00046164 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0240
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialCarbide
Insert style11NR
Manufacturer gradeCP500
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.1181
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
