Seco

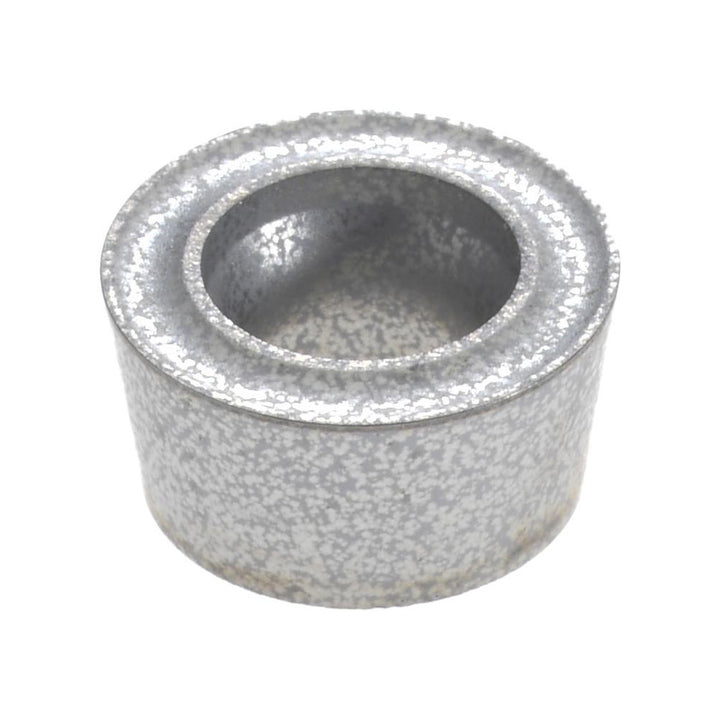

RCMT0603-14 Carbide Insert, Grade 883 - Seco 00048219
MFR# 00048219ISO/ANSI# RCMT060300Series RCMT-F1
$9.35List $11.98
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeR - Round
Grade883
MaterialCarbide
Description
The Seco 00048219 is a RCMT0603-14 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Ansi insert codeRCMT22
Ansi size code22
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/8
Cutting edge styleSharp
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1142
Included angle360
Industry standard numberRCMT22-F1(O)
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeR - Round
Insert size code22
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT0603-14
Iso insert codeRCMT060300
Iso size code060300
Lead angle360
Length range0.0000 - 0.3000
Manufacturers catalog number00048219
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.1250
Maximum depth of cut frac in1/8
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
