Seco

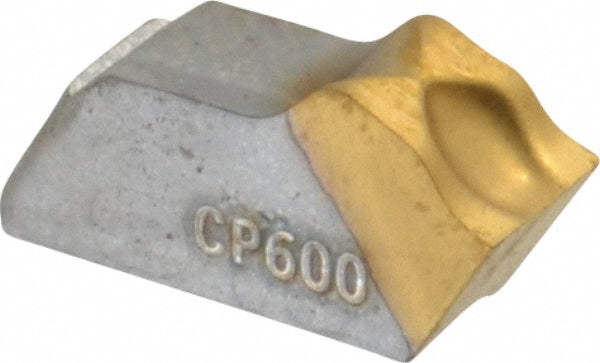

Solid Carbide Insert, Grade CP600, TiAlN - Seco 00048847
MFR# 00048847Series 150.10
$23.16List $29.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP600
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00048847 is a solid carbide indexable insert, grade CP600, TiAlN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiAlN
Coating processPVD
Corner radius0.0090
Cutting tool applicationCut-off
Cutting width0.1610
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4
Lead angle0
Lead angle directionNeutral
Manufacturer gradeCP600
Material gradeC5
Msc manufacturer number150.10-4N-14
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Relief angle0.00
Single or double endSingle
Width tolerance0.003
