Seco

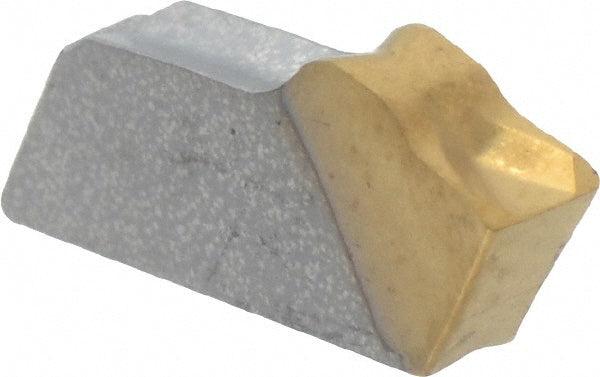

Solid Carbide Insert, Grade CP600, TiAlN - Seco 00048853
MFR# 00048853Series 150.10
$20.81List $26.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP600
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00048853 is a solid carbide indexable insert, grade CP600, TiAlN coated. Suited for universal.
Specifications
Chipbreaker16
Coating finishTiAlN
Coating processPVD
Corner radius0.0070
Cutting tool applicationCut-off
Insert handNeutral
Insert materialSolid Carbide
Insert size code2.5
Lead angle directionNeutral
Manufacturer gradeCP600
Material gradeC5
Multi use toolNo
Overall length0.3540
Overall width0.0980
Primary workpiece materialUniversal
Relief angle0.00
