Seco

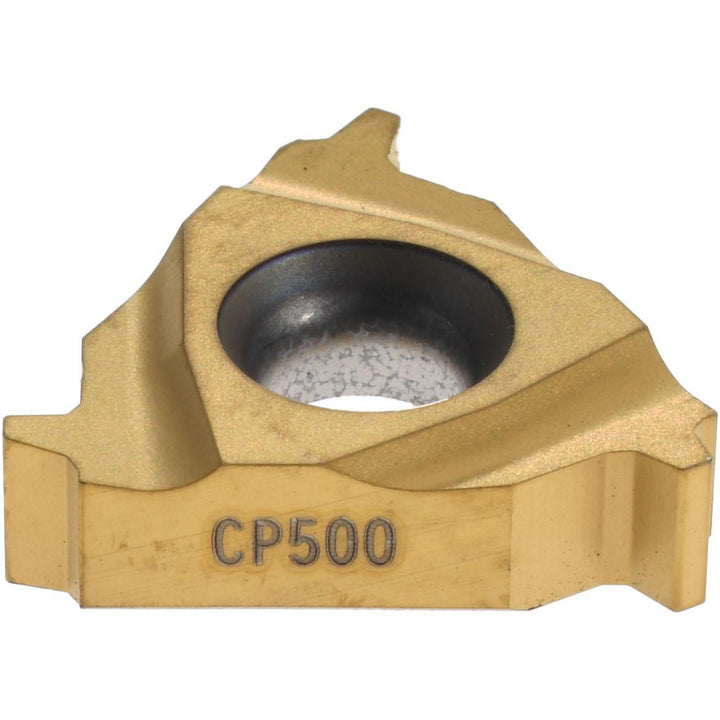

Carbide Insert, Grade CP500, TiAlN - Seco 00049802
MFR# 00049802Series Snap-Tap
$54.23List $68.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00049802 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle29
Inscribed circle (mm)9.53
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Manufacturer gradeCP500
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch12
Thread standardAcme
Thread typeExternal
