Seco

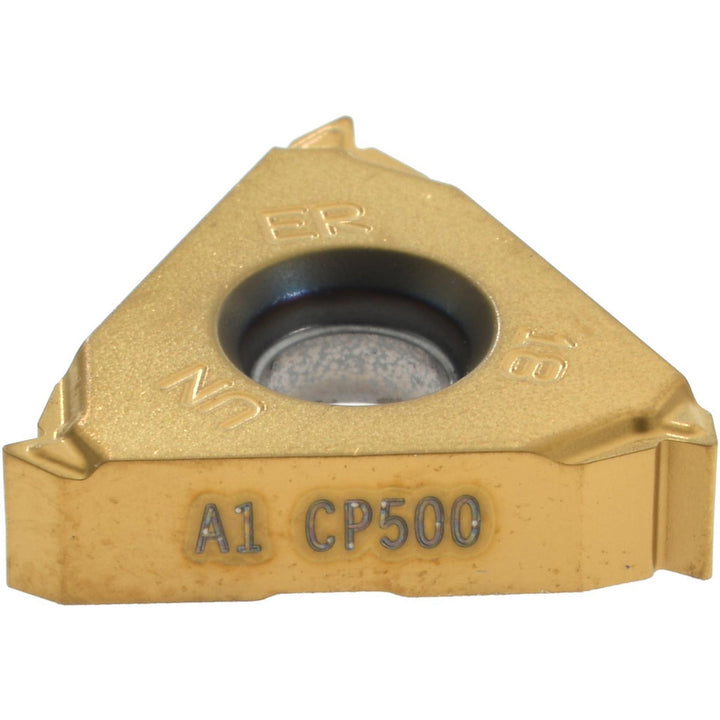

3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00049867
MFR# 00049867Series Snap-Tap
$34.72List $43.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00049867 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerA1
Coating finishTiAlN
Coating processPVD
Corner radius0.0070
Cutting edge to theoretical edge length0.0310
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert style16ER
Manufacturer gradeCP500
Primary workpiece materialCast Iron; Stainless Steel; Steel
StandardsISO
Thickness0.1366
Threads per inch18
Thread standardUN
Thread typeExternal
