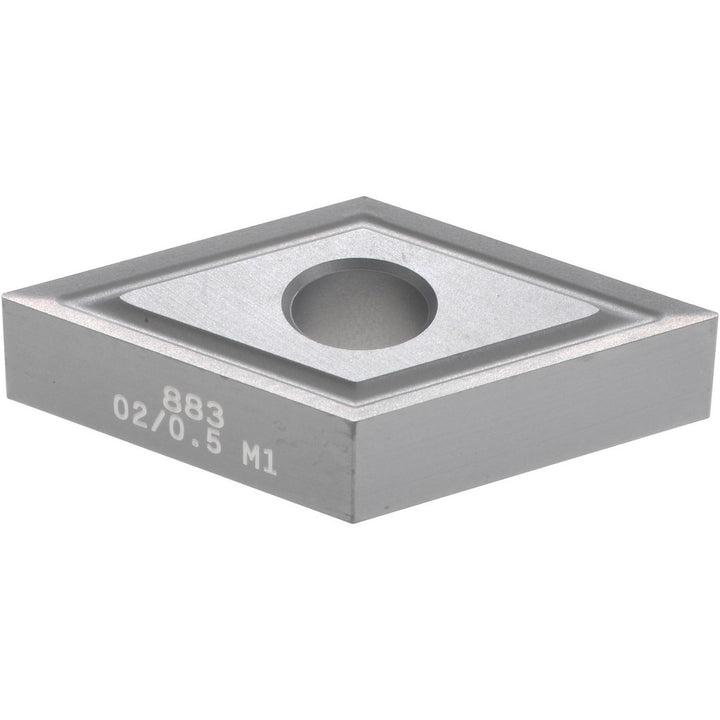

DNGG150402-M1 Carbide Insert, Grade 883 - Seco 00050064

Seco

DNGG150402-M1 Carbide Insert, Grade 883 - Seco 00050064

MFR# 00050064ISO/ANSI# DNGP150402Series DNGP-M1

$29.22List $37.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade883
MaterialCarbide

Description

The Seco 00050064 is a DNGG150402-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeDNGP430.5
Ansi size code430.5
Chip breakerM1
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNGP430.5F-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code430.5
Insert styleDNGP
Insert thickness in3/16
Iso codeDNGG150402-M1
Iso insert codeDNGP150402
Iso size code150402
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number00050064
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.6024
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
