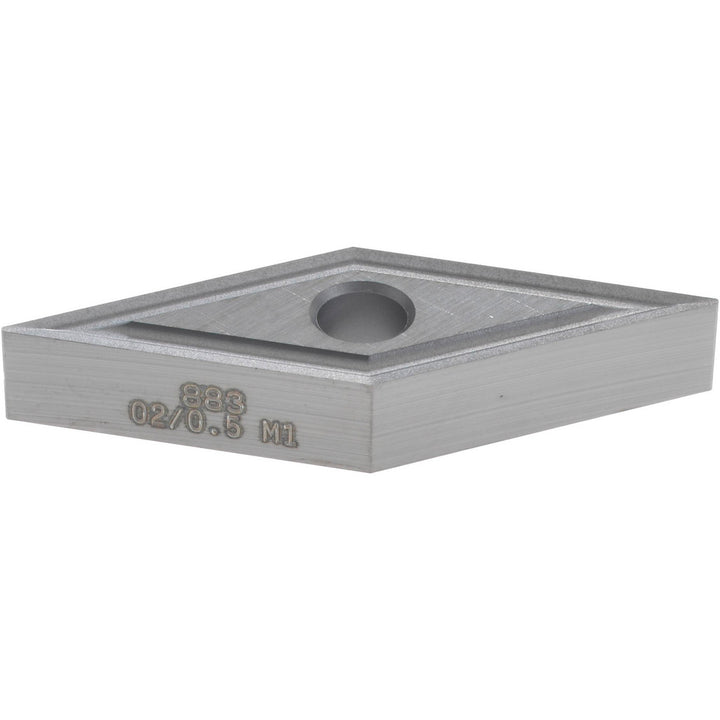

VNGG160402-M1 Carbide Insert, Grade 883 - Seco 00050066

Seco

VNGG160402-M1 Carbide Insert, Grade 883 - Seco 00050066

MFR# 00050066ISO/ANSI# VNGP160402Series VNGP-M1

$39.82List $51.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
Grade883
MaterialCarbide

Description

The Seco 00050066 is a VNGG160402-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeVNGP330.5
Ansi size code330.5
Chip breakerM1
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNGP330.5F-M1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGG160402-M1
Iso insert codeVNGP160402
Iso size code160402
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00050066
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.6220
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
