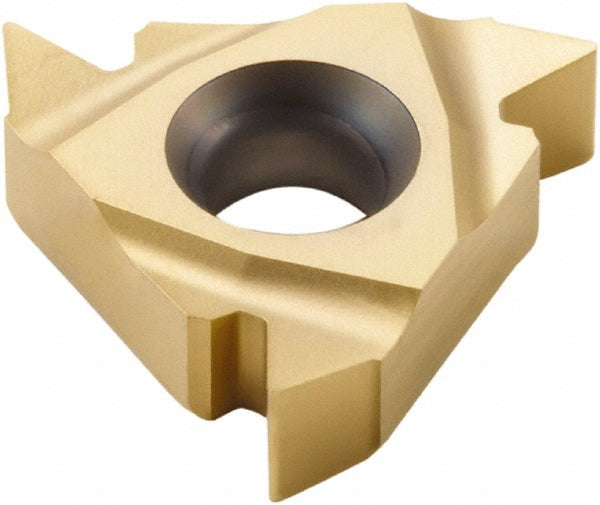

Solid Carbide Insert, Grade CP500, TiAlN - Seco 00050075
MFR# 00050075Series Snap Tap
$43.37List $46.08
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00050075 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0800
Included angle55
Inscribed circle (mm)9.53
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Manufacturer gradeCP500
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch48-16
Thread standardPartial Profile 55 Degree
Thread typeExternal
