Seco

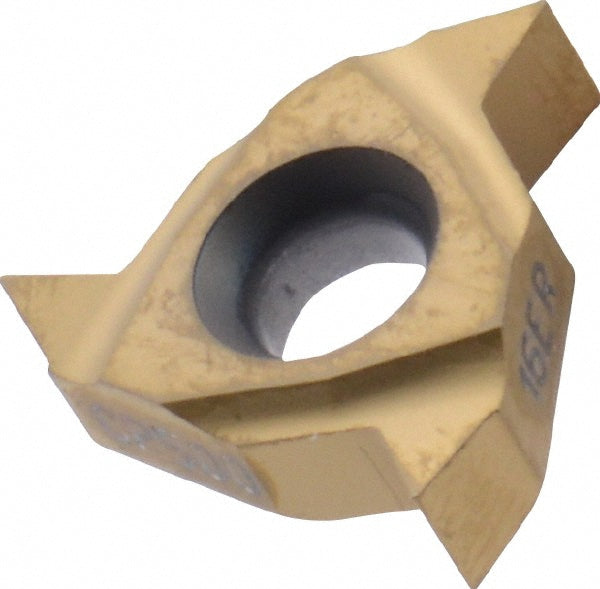

Carbide Insert, Grade CP500, TiAlN - Seco 00050091
MFR# 00050091Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00050091 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0800
Included angle55
Inscribed circle (mm)9.53
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Manufacturer gradeCP500
Pitch (mm)0.50-3.00
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch48-8
Thread standardPartial Profile 55 Degree
Thread typeExternal
