Seco
3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00050333
MFR# 00050333Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description

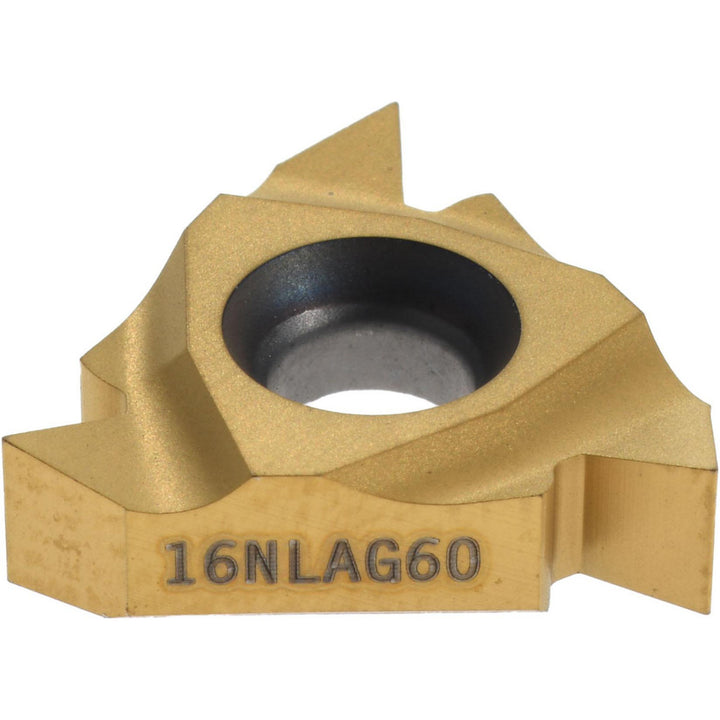

The Seco 00050333 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0590
Included angle60
Inscribed circle in3/8
Insert handLeft Hand
Insert materialCarbide
Insert style16NL
Manufacturer gradeCP500
Pitch (mm)0.50-3.00
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeInternal
