Seco

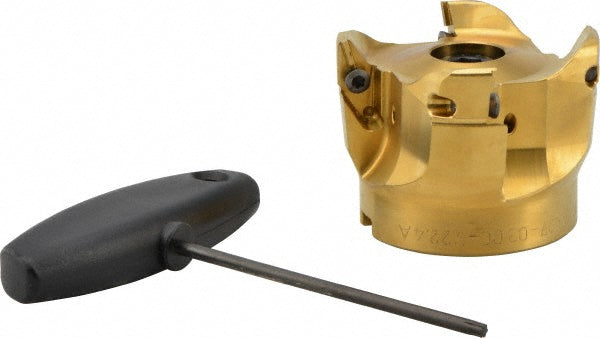

3" Indexable Milling Cutters - Seco 00050756
MFR# 00050756Series R220.97
$1,219.91List $1,296.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00050756 indexable milling cutters. Series R220.97.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeVPGX2206E-E10
Complete insert compatibilityVPGX 220631EN-E10; VPGX 220631FN-E06
Coolant throughYes
Counterbore diameter (mm)25.40
Cutter styleR220.97
Cutting diameter in3
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodScrew
Insert inscribed circle (mm)22.00
Keyway width0.3800
Maximum cutting diameter (mm)76.20
Maximum depth of cut0.3940
Maximum ramping angle5.00degree
Maximum rpm25000
Number of cutter inserts4
Overall height2.2500
Tool applicationHelical Interpolation; Ramping
