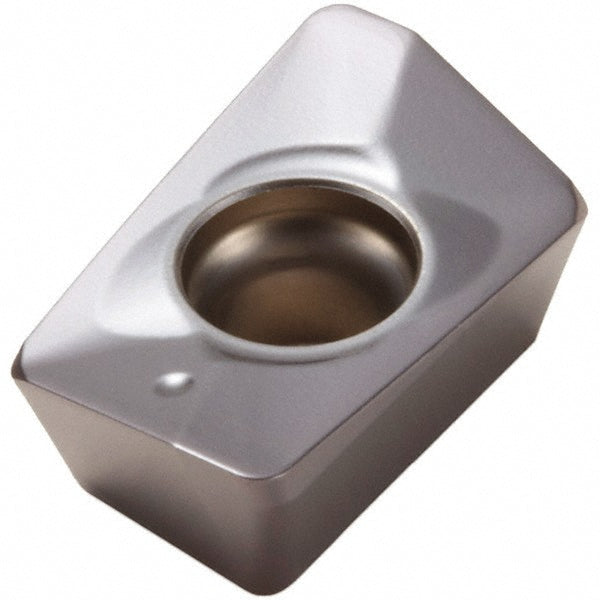

XOMX120431TR-D14 Solid Carbide Insert, Grade F30M, TiAlN - Seco 00052322
MFR# 00052322ISO/ANSI# XOMX120431TR-D14Cat# XOMX120431TR-D14Series XOMX-12
$26.57List $33.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00052322 is a XOMX120431TR-D14 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeXOMX120431TR-D14
Chip breakerD14
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120431
Insert styleXOMX
Iso codeXOMX120431TR-D14
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120431TR-D14
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle1
Relief angle15.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
