Seco

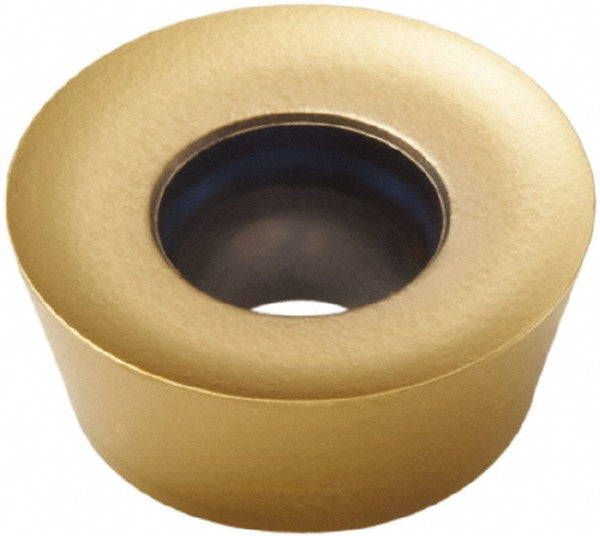

RDHT06T1M0-E02 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00052323
MFR# 00052323ISO/ANSI# RDHT06T1M0-E02Cat# RDHT06T1M0-E02Series RDHT-06
$18.25List $23.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00052323 is a RDHT06T1M0-E02 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeRDHT06T1M0-E02
Chip breakerE02
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutter series compatibilityR217.29-03; R220.29-03
Cutting edge effective length0.1181
Cutting edge styleHoned
Hole diameter0.0984
Included angle degree360
Inscribed circle0.2362
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size06
Insert size code06T1
Insert styleRDHT
Iso codeRDHT06T1M0-E02
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberRDHT06T1M0-E02
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1181
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle15.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness0.0858
Thickness range0.0000 to 0.1000
Width0.2362
