Seco

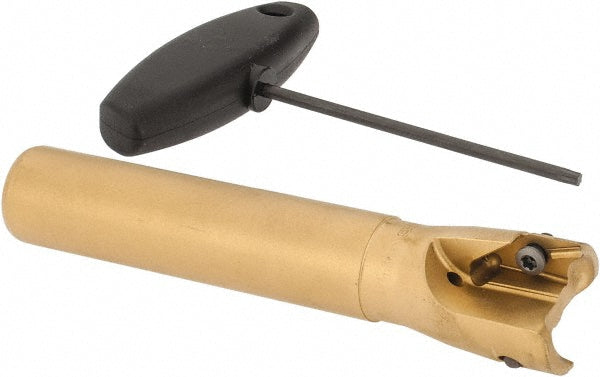

1-1/4" Indexable End Mills - Seco 00054103
MFR# 00054103Cat# R217.97-01.25-0-V22.2ASeries R217
$752.27List $799.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 00054103 indexable end mills. Series R217.
Specifications
Compatible insert styleVPGX 2206..E.-E10
Coolant throughYes
Cutting diameter in1-1/4
Functional length3.7950
Head length in2
Insert holding methodScrew
Manufacturers catalog numberR217.97-01.25-0-V22.2A
Maximum cutting diameter in1-1/4
Maximum depth of cut0.3940
Maximum rpm40000
Number of cutter inserts2
Number of flutes2
Overall length6.0000
Projection3.5400
Shank diameter in1
Shank length4.0000
Shank typeCylindrical
Toolholder styleR217.97
Tool applicationMilling
Weldon flatNo
