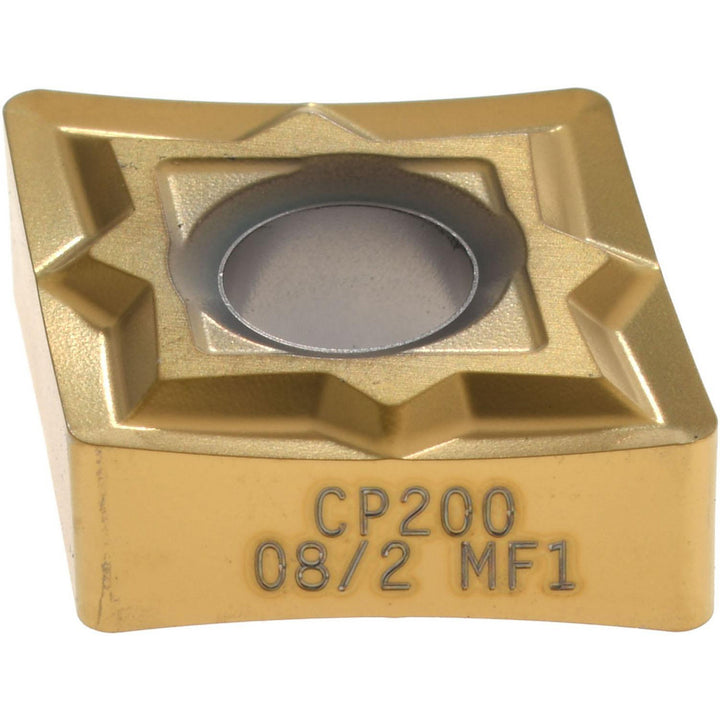

CNMG120408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00054151

Seco

CNMG120408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00054151

MFR# 00054151ISO/ANSI# CNMP120408Series CNMP-MF1

$18.77List $24.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00054151 is a CNMG120408-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNMP432
Ansi size code432
Chip breakerMF1
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMP432-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMP
Insert thickness in3/16
Iso codeCNMG120408-MF1
Iso insert codeCNMP120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number00054151
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
