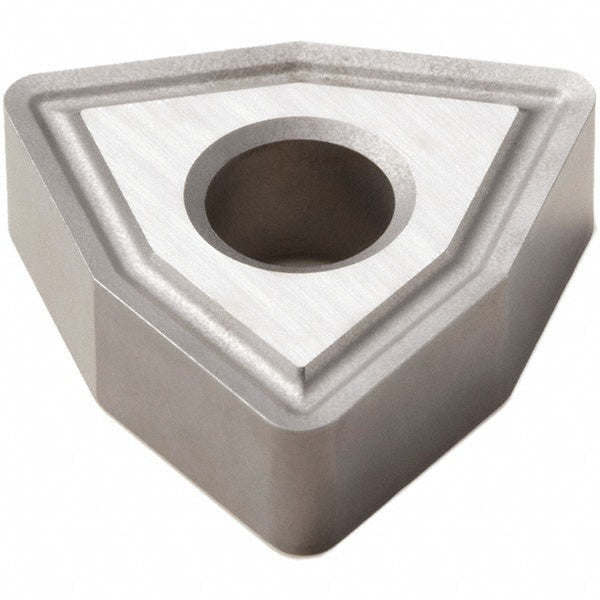

WNMG080404-M1 Carbide Insert, Grade 883 - Seco 00054167

Seco

WNMG080404-M1 Carbide Insert, Grade 883 - Seco 00054167

MFR# 00054167ISO/ANSI# WNMP080404Series WNMP-M1

$15.65List $20.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade883
MaterialCarbide

Description

The Seco 00054167 is a WNMG080404-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeWNMP431
Ansi size code431
Chip breakerM1
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberWNMP431-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG080404-M1
Iso insert codeWNMP080404
Iso size code080404
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number00054167
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.3346
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
