Seco

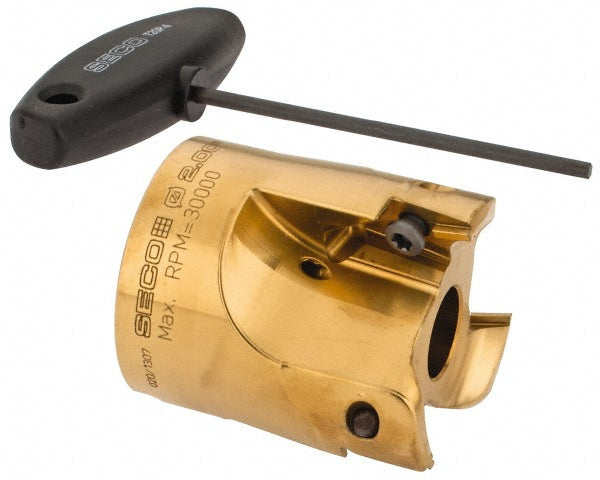

2" Indexable Milling Cutters - Seco 00054587
MFR# 00054587Series R220.97
$929.15List $987.11
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00054587 indexable milling cutters. Series R220.97.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeVPGX2206E-E10
Complete insert compatibilityVPGX 220631EN-E10; VPGX 220631FN-E06
Coolant throughYes
Counterbore diameter (mm)19.05
Cutter styleR220.97
Cutting diameter in2
Cutting directionRight Hand
Hub diameter (mm)47.00
Insert holding methodScrew
Insert inscribed circle (mm)22.00
Keyway width0.3200
Maximum cutting diameter (mm)50.80
Maximum depth of cut0.3940
Maximum ramping angle8.00degree
Maximum rpm30000
Number of cutter inserts3
Overall height2.2500
Tool applicationHelical Interpolation; Ramping
