Seco

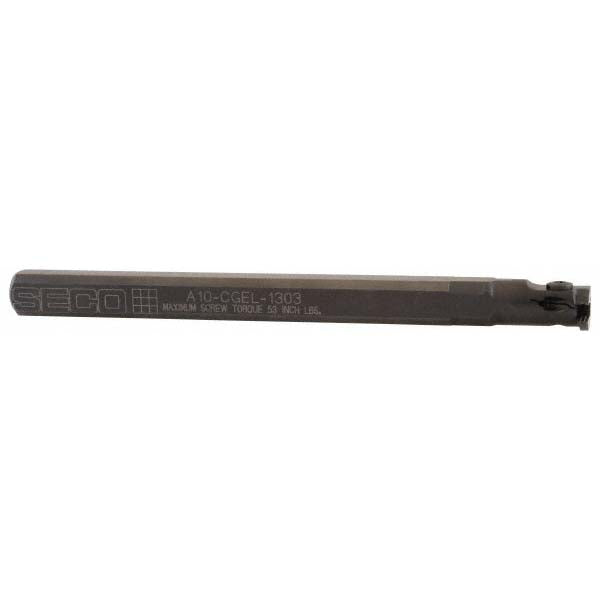

Indexable Grooving - Seco 00055598
MFR# 00055598Series Multi-Directional Turning (MDT)
$451.09List $470.89
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00055598 indexable grooving. Suited for cast iron. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge0.7500
Center to cutting edge0.7500
Compatible insert size codeLC1304
Complete insert compatibilityLC.. 1304..; LCMF; LCMR
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height2.6000
Head length2.6000
Insert compatibilityLC..1304..
Insert holding methodClamp
Maximum bore depth0.2950
Maximum depth of cut0.9850
Maximum groove width0.1570
Minimum bore diameter0.9850
Minimum groove width0.1570
Minimum hole diameter0.9850
Msc manufacturer numberA16-CGFR/L 1304
Multi use toolYes
Overall length in10
Primary workpiece materialCast Iron
Shank height0.9210
Shank length7.4000
Shank width diameter0.9610
Toolholder materialSteel
Toolholder styleA..-CGHR
Toolholder typeNon-Face Grooving
