Seco

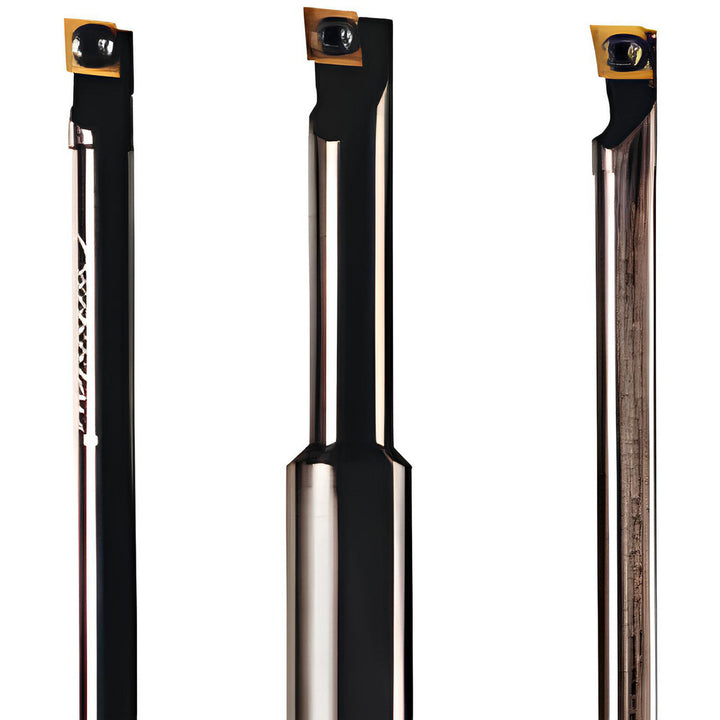

Indexable Boring - Seco 00057651
MFR# 00057651Cat# H0308 SCLDR-1.2
$479.77List $539.00
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00057651 indexable boring.
Specifications
Center to cutting edge0.1180
Compatible insert shapeDiamond
Compatible insert size code1.21.2.
Coolant throughNo
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityCD.. 1.2
Insert holding methodScrew
Insert inscribed circle in5/32
Insert screwCS115
Insert thickness0.0400
Lead angle-5
Manufacturers catalog numberH0308 SCLDR-1.2
Maximum bore depth1.1200
Minimum bore diameter0.2120
Multi use toolNo
Overall length4.0000
RakeNegative
Rake angle0.00
Shank diameter in1/2
Toolholder styleSCLD
Tool materialHeavy Metal
