Seco

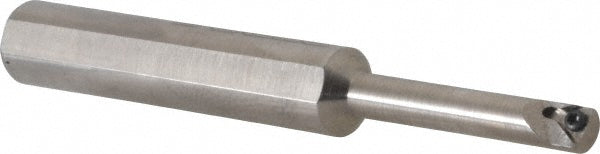

Indexable Boring - Seco 00057666
MFR# 00057666Cat# H0408 STLDR-1.2
$376.96List $431.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00057666 indexable boring.
Specifications
Center to cutting edge0.1750
Compatible insert shapeTriangle
Compatible insert size code1.21.5.
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityTD.. 1.2
Insert holding methodScrew
Insert inscribed circle in5/32
Insert screwCS120
Insert thickness0.0470
Lead angle-5
Manufacturers catalog numberH0408 STLDR-1.2
Maximum bore depth1.5000
Minimum bore diameter0.3000
Multi use toolNo
Overall length4.0000
RakeNegative
Rake angle0.00
Shank diameter in1/2
Toolholder styleSTLD
Tool materialHeavy Metal
