Seco

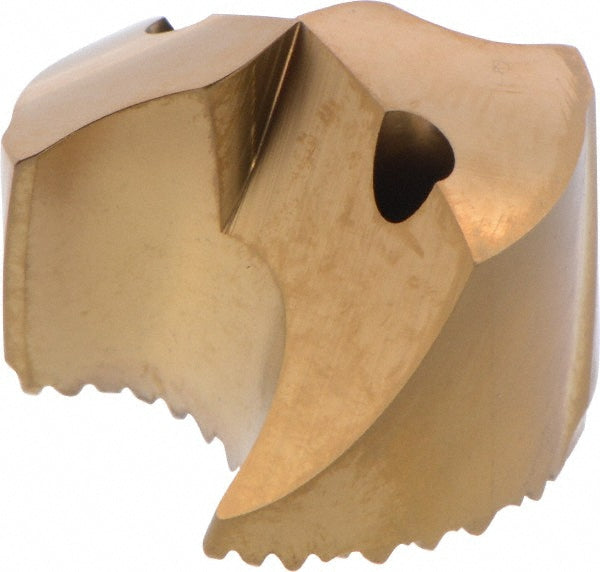

Carbide Insert, Grade UNSPEC, TiAlN - Seco 00059685
MFR# 00059685Series Crownloc
$182.99List $194.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeUNSPEC
CoatingTiAlN
Description
The Seco 00059685 is a carbide indexable insert, grade UNSPEC, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7283
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4345
Height0.5669
Included angle degree140
Insert geometryP
Insert holding methodClamp
Iso numberSD100-18.50-P
Manufacturer gradeUNSPEC
Number of flutes2
Overall length projection0.5670
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StyleCrownloc
Tip materialSolid Carbide
