Seco

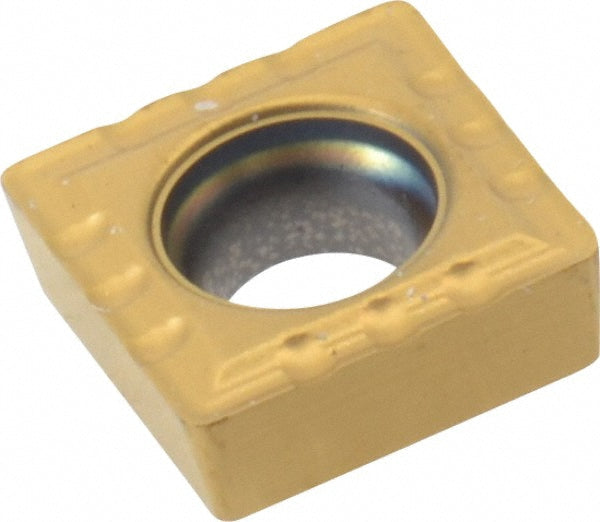

0.2500" IC Solid Carbide Insert, Grade T250D, Coated - Seco 00059712
MFR# 00059712Series Perfomax
$20.97List $26.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT250D
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00059712 is a solid carbide indexable insert, grade T250D, Coated coated. Suited for universal.
Specifications
ChipbreakerP1
Coating finishCoated
Coating processPVD
Corner radius0.0016
Included angle degree90
Inscribed circle0.2500
Insert materialSolid Carbide
Insert size060204
Insert size code06
Insert styleSCGX
Length0.2500
Manufacturer gradeT250D
Material gradeMicrograin
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness in3/32
Width0.2500
