Seco

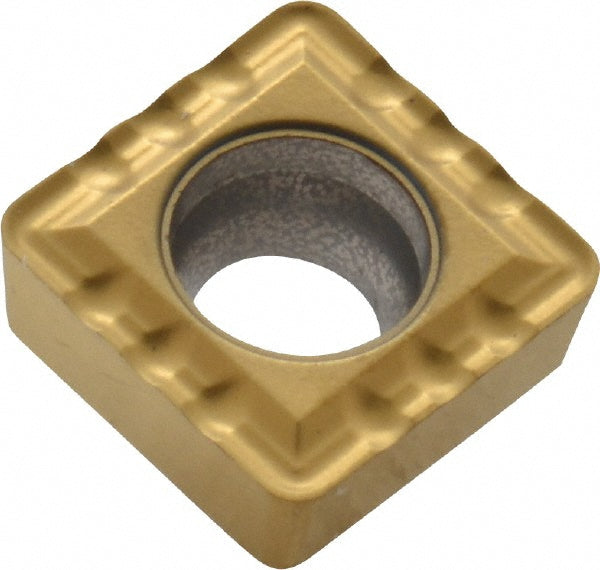

0.3120" IC Solid Carbide Insert, Grade T250D, Coated - Seco 00059713
MFR# 00059713Series Perfomax
$22.14List $28.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT250D
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00059713 is a solid carbide indexable insert, grade T250D, Coated coated. Suited for universal.
Specifications
ChipbreakerP1
Coating finishCoated
Coating processPVD
Corner radius0.0310
Included angle degree90
Inscribed circle0.3120
Insert materialSolid Carbide
Insert size070308
Insert size code07
Insert styleSCGX
Length0.3130
Manufacturer gradeT250D
Material gradeMicrograin
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness in1/8
Width0.3130
