Seco

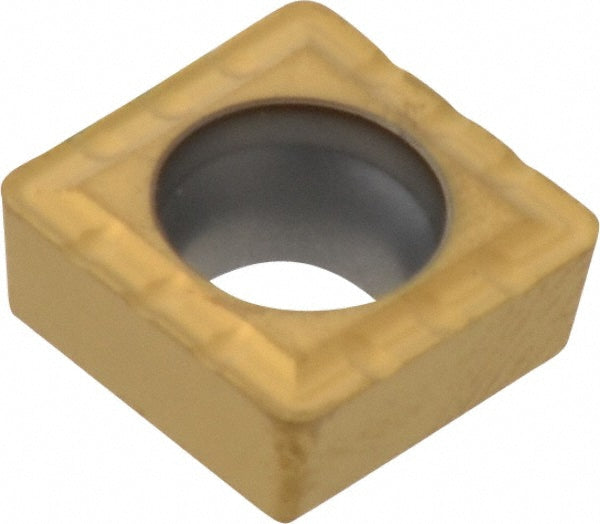

0.3750" IC Carbide Insert, Grade T250D, TiAlN - Seco 00059714
MFR# 00059714Series Perfomax
$23.58List $30.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT250D
MaterialCarbide
CoatingTiAlN
Description
The Seco 00059714 is a carbide indexable insert, grade T250D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerP1
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle degree90
Inscribed circle0.3750
Insert materialCarbide
Insert size09T308
Insert size code09
Insert styleSCGX
Length0.3750in
Manufacturer gradeT250D
Material gradeMicrograin
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness0.1560in
Width0.3750in
