Seco

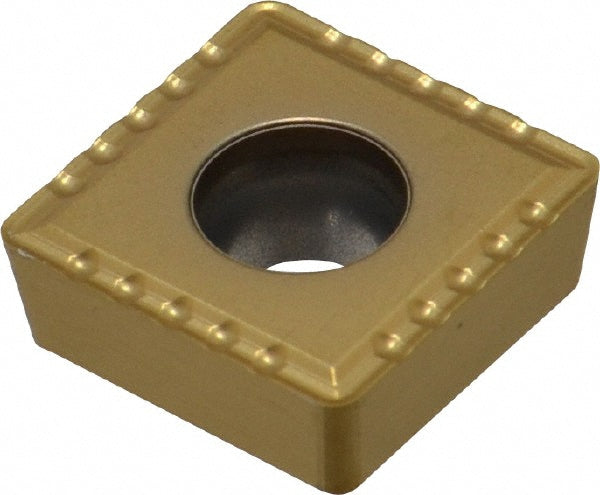

0.6250" IC Carbide Insert, Grade T250D, TiAlN - Seco 00059716
MFR# 00059716Series Perfomax
$31.58List $40.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT250D
MaterialCarbide
CoatingTiAlN
Description
The Seco 00059716 is a carbide indexable insert, grade T250D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerP1
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Included angle degree90
Inscribed circle0.6250
Insert materialCarbide
Insert size150512
Insert size code15
Insert styleSCGX
Length0.6250in
Manufacturer gradeT250D
Material gradeMicrograin
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness0.2190in
Width0.6250in
