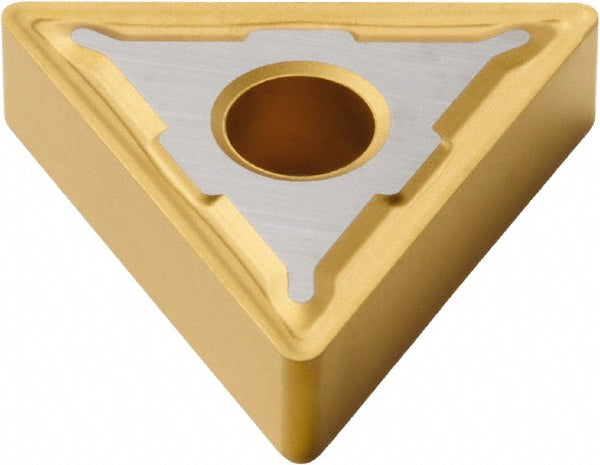

TNMG270616-M5 Carbide Insert, Grade TP40, TiC - Seco 00059839

Seco

TNMG270616-M5 Carbide Insert, Grade TP40, TiC - Seco 00059839

MFR# 00059839ISO/ANSI# TNMG544-M5Series TNMG-M5

$37.73List $48.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeTriangle
GradeTP40
MaterialCarbide
CoatingTiC

Description

The Seco 00059839 is a TNMG270616-M5 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.

Specifications

Chip breakerM5
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle60degree
Industry standard numberTNMG544-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.0827
Insert materialCarbide
Insert shapeTriangle
Insert size code544
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270616-M5
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00059839
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.9291
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width1.0827in
Wiper edgeNo
