Seco

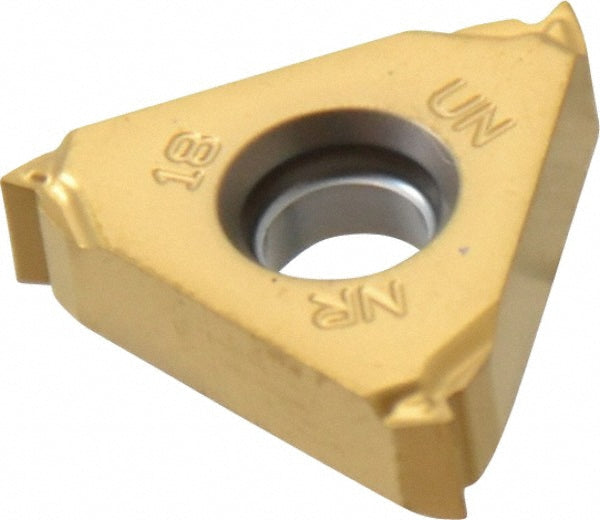

3/8" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00064512
MFR# 00064512Series Snap Tap
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00064512 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerA1
Coating finishCoated
Coating processPVD
Corner radius0.0040
Cutting edge to theoretical edge length0.0310
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert style16NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialCast Iron; Stainless Steel; Steel
StandardsISO
Thickness0.1366
Threads per inch18
Thread standardUN
Thread typeInternal
