Seco

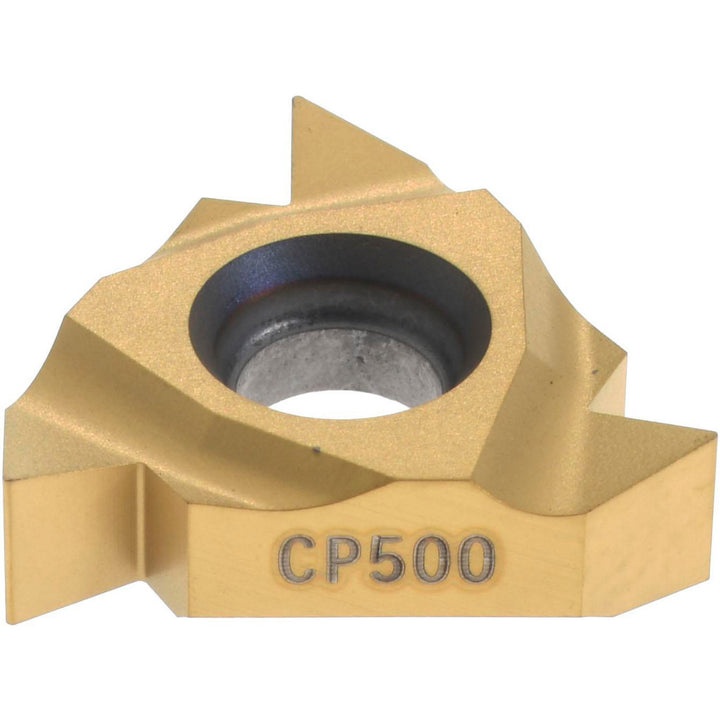

3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00064738
MFR# 00064738Series Snap-Tap
$40.00List $51.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00064738 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0630
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert style16NR
Manufacturer gradeCP500
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch8
Thread standardNPT
Thread typeInternal
