Seco

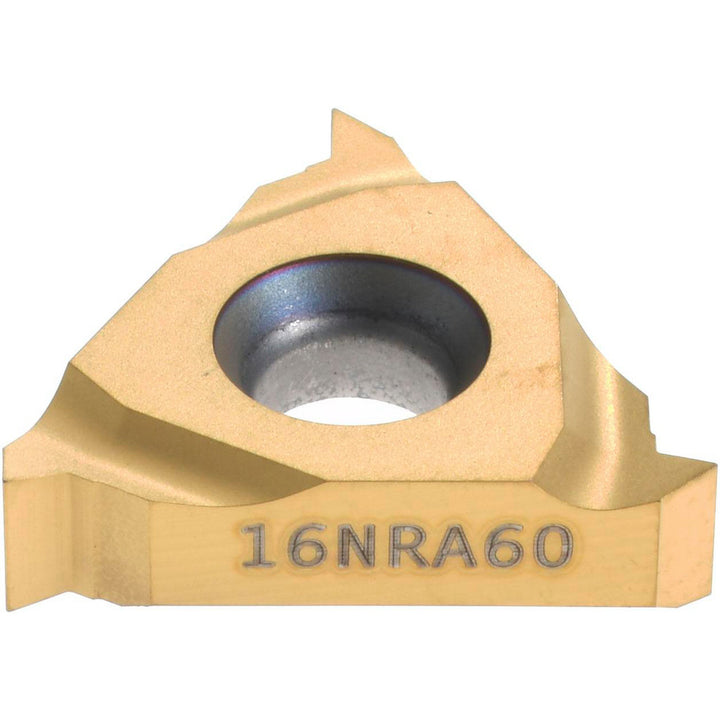

3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00064777
MFR# 00064777Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00064777 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16NR
Manufacturer gradeCP500
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
