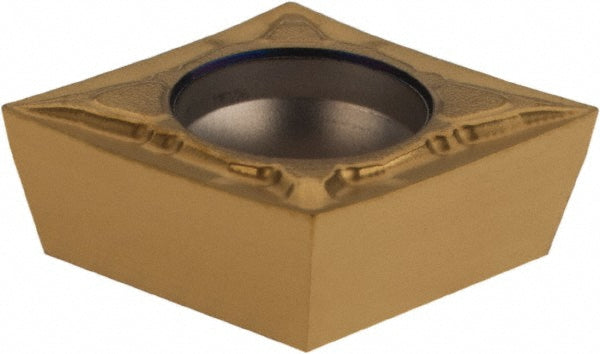

CPMT09T302-F1 Carbide Insert, Grade CP200, TiAlN - Seco 00064904

Seco

CPMT09T302-F1 Carbide Insert, Grade CP200, TiAlN - Seco 00064904

MFR# 00064904ISO/ANSI# CPMT32.50.5-F1Series CPMT-F1

$17.02List $21.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00064904 is a CPMT09T302-F1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerF1
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.50.5
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T302-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number00064904
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.3465
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
