Seco

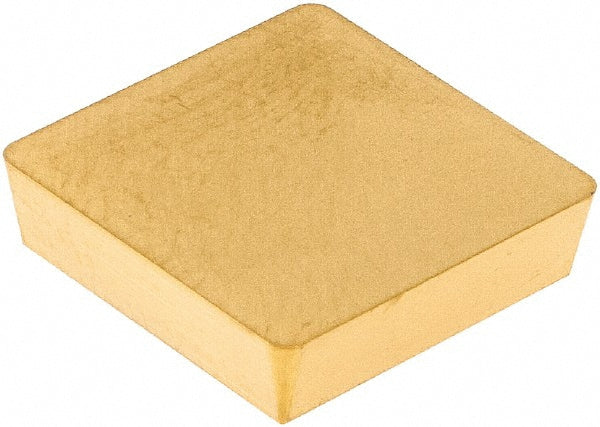

SPGN120308 Carbide Insert, Grade CP200, TiAlN - Seco 00064907
MFR# 00064907ISO/ANSI# SPG422Series SPG-Flat Top
$21.17List $26.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00064907 is a SPGN120308 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle90degree
Industry standard numberSPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso codeSPGN120308
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00064907
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.4409
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
