Seco

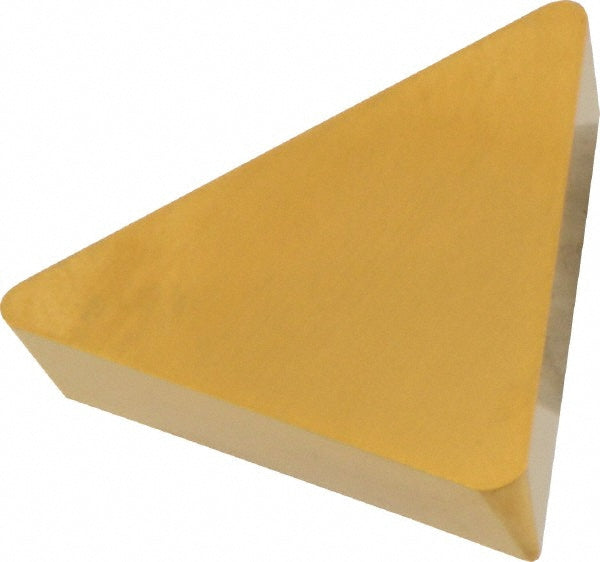

TPGN160308 Carbide Insert, Grade CP200, TiAlN - Seco 00064908
MFR# 00064908ISO/ANSI# TPG322Series TPG-Flat Top
$18.60List $23.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00064908 is a TPGN160308 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPG322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00064908
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.6181
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width0.6496in
Wiper edgeNo
