Seco

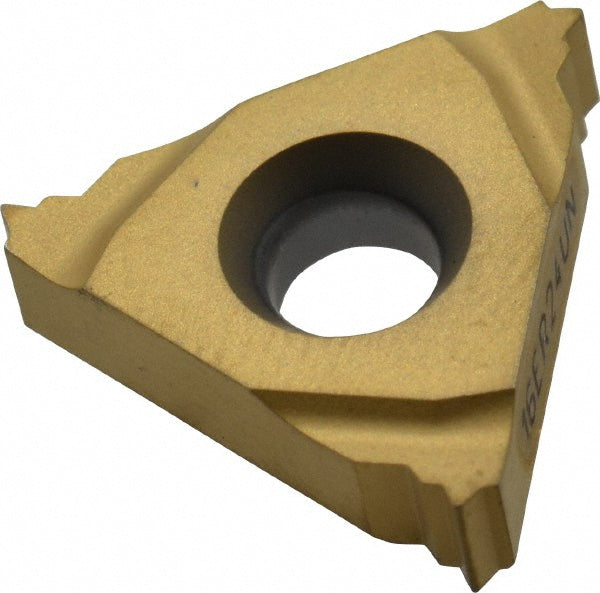

3/8" IC Solid Carbide Insert, Grade CP300, Coated - Seco 00064928
MFR# 00064928Series Snap Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP300
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00064928 is a solid carbide indexable insert, grade CP300, Coated coated. Suited for steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0050
Cutting edge to theoretical edge length0.0310
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert style16ER
Manufacturer gradeCP300
Material gradeC6
Primary workpiece materialSteel
StandardsISO
Thickness0.1366
Threads per inch24
Thread standardUN
Thread typeExternal
