Seco
Carbide Insert, Grade CP300, TiAlN - Seco 00064929
MFR# 00064929Series Snap-Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP300
MaterialCarbide
CoatingTiAlN
Description

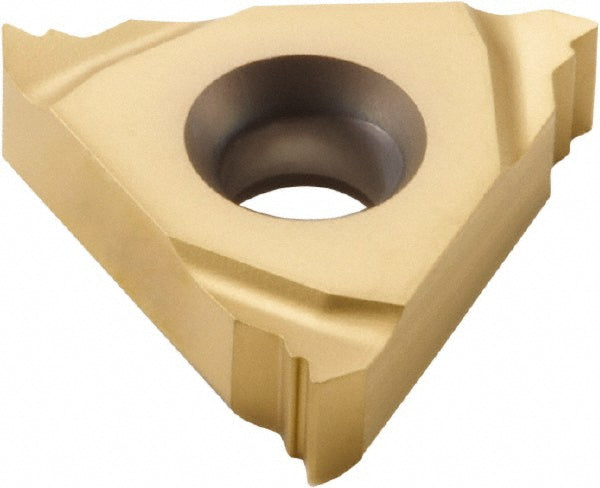

The Seco 00064929 is a carbide indexable insert, grade CP300, TiAlN coated. Suited for steel.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.1100
Included angle60
Inscribed circle (mm)9.53
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Manufacturer gradeCP300
Primary workpiece materialSteel
StandardsISO
Thickness0.1366
Threads per inch28
Thread standardUN
Thread typeExternal
