Seco

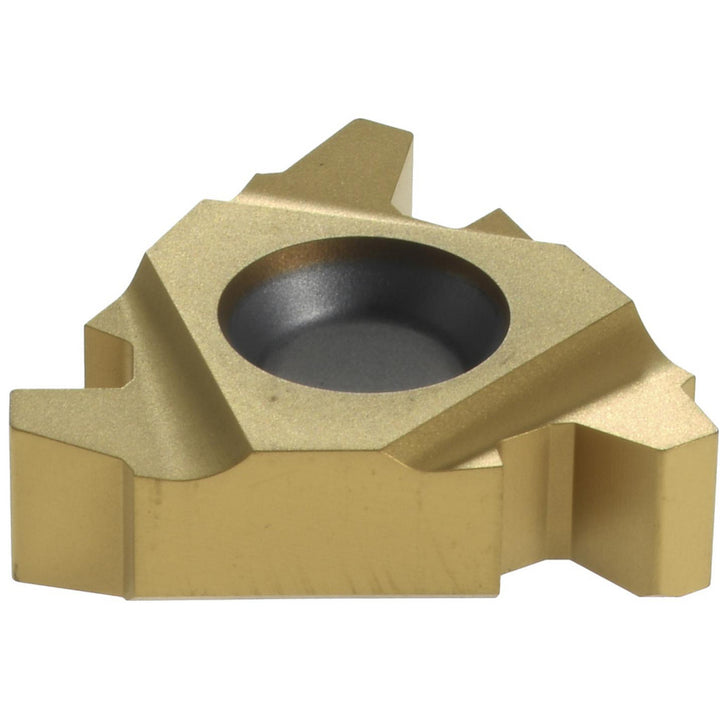

1/2" IC Carbide Insert, Grade CP500, TiAlN - Seco 00067307
MFR# 00067307Series Snap-Tap
$86.56List $109.08
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00067307 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle29
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert size code22
Insert style22ER
Manufacturer gradeCP500
Primary workpiece materialUniversal
StandardsISO
Thickness0.1854
Threads per inch5
Thread standardAcme
Thread typeExternal
