Seco

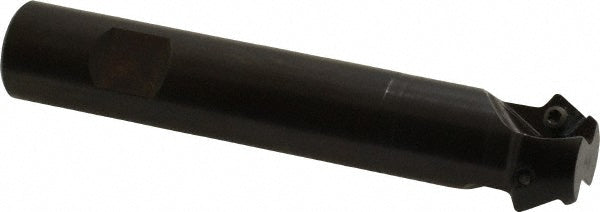

Indexable End Mills - Seco 00070080
MFR# 00070080Series Milling Normal ISO
$504.93List $527.10
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00070080 indexable end mills. Series Milling Normal ISO.
Specifications
Compatible insert size codeSPMX0903
Complete insert compatibilitySPMX 090304-75; SPMX 0903AP-75
Functional length (mm)75.00
Included angle degree60
Insert styleSPMX 0903..
Maximum body diameter0.7500
Maximum cutting diameter1.0400
Maximum depth of cut0.2400
Maximum rpm24300
Minimum cutting diameter in3/4
Number of cutter inserts2
Overall length4.3300
Shank diameter in3/4
Shank length2.9500
Shank typeWeldon Flat
Toolholder styleR215.39
Tool applicationChamfering
