Seco

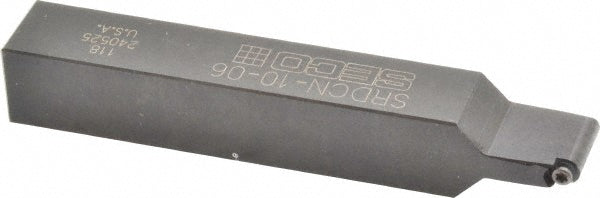

Indexable Turning & Profiling - Seco 00071932
MFR# 00071932Cat# SRDCN1006Series Screw Lock
$143.57List $164.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00071932 indexable turning & profiling. Suited for universal. Series Screw Lock.
Specifications
Back of bar to cutting edge0.4310
Compatible insert size codeRCMT0602
Complete insert compatibilityRCMT 0602
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length0.6300
Insert compatibilityRCMT
Insert holding methodScrew
Insert inscribed circle0.2360
Manufacturers catalog numberSRDCN1006
Multi use toolNo
Overall length in4
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height in5/8
Shank width in5/8
Toolholder materialSteel
Toolholder styleSRDC
