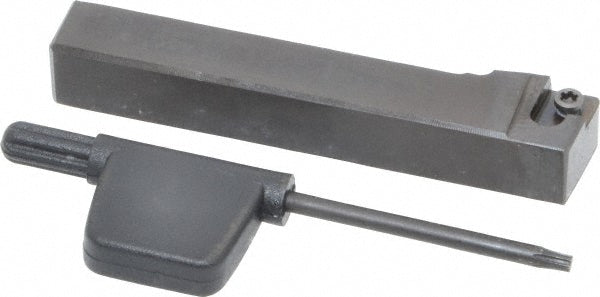

Indexable Turning & Profiling - Seco 00071951
MFR# 00071951Cat# SCLCR; L62Series Screw Lock
$143.57List $164.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00071951 indexable turning & profiling. Suited for universal. Series Screw Lock.
Specifications
Back of bar to cutting edge in1/2
Compatible insert size codeCC215
Complete insert compatibilityCCMT 21.51
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.4900
Insert compatibilityCC..21.5.
Insert holding methodScrew
Insert inscribed circle in1/4
Manufacturers catalog numberSCLCR; L62
Multi use toolNo
Overall length in2-1/2
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height in3/8
Shank width in3/8
Toolholder materialSteel
Toolholder styleSCLC
