Seco

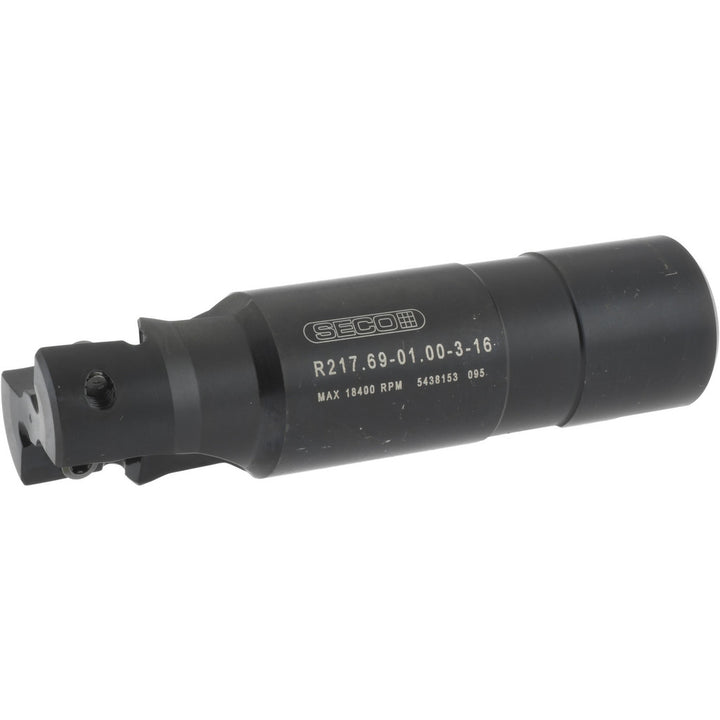

Indexable End Mills - Seco 00072158
MFR# 00072158
$515.42List $547.56
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 00072158 indexable end mills.
Specifications
Coolant throughNo
Cutter styleR217.69-16
Cutting diameter1
Cutting diameter (mm)25.40
Head length1.27
Insert compatibilityAP.. 1604
Insert holding methodScrew
Iso numberR217.69-01.00-3-16
Lead angle90
Maximum depth of cut0.5900
Maximum rpm18400
Number of cutter inserts2
Number of flutes2
Overall length3.9400
Shank diameter in1
Shank length2.6700
Shank typeWeldon Flat
Tool applicationMilling
Usable length2.7950
